High Performance Soil Test Drilling Rig Machine For Geological Investigation

Name: High Performance Soil Test Drilling Rig Machine For Geological Investigation
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : ST-150

Certification : CE ISO SGS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Condition : New

Type : Rotary Drilling Rig

Power Type : Diesel

Usage : Engineering Project

Power(W) : 13.2kw

Dimension(L*W*H) : 1610*790*1420

Weight : 600kg

Drilling Diameter : 76-300mm

Drilling Depth : 35-150 m

Lifting Capacity : 24 KN

Warranty : 1 year

Contact Now

Hot Sale Geotechnical Soil Test Drilling Rig Machine for Geological Investigation

Product Description:

1. Small, light and compact in structure.

2. 2 wheels trailer for easy relocation on site.

3. Easy to use tower, fast to install, safe and stable.

4. High quality, long duration, long lasting performance.

Product Parameter:

Basic Parameters
Drilling depth	150m
Drilling diameter	300mm
Drill pipe diameter	42mm
Gross weight of drilling machine(engine not included)	500kg
Dimension (length ×width × height)	2050 × 1180 × 1420 mm
Revolving Plate
Rotate speed	60 200 400 610 1100 r/min
Maximum torque	1800N*m
Driving travel	450mm
Maximum Cylinder driving force	20,000N
Maximum Cylinder lifting force	30,000N
Lifter
Lifting capacity	24,000N
Bobbin line speed (2 layers)	0.20 0.72 1.26 2.8 m/s
Bobbin diameter	140mm
Rope diameter	11mm
Rope capacity	26m
Drilling rig
Type	Steel pipe quadripod
Height	6m
Drive motor
Type	Changzhou ZS1100 diesel engine
Rated power	11.03KW
Tare weight	150kg

High Performance Soil Test Drilling Rig Machine For Geological Investigation

Product Tags:

soil testing drilling rig

soil investigation machine

Quality High Performance Soil Test Drilling Rig Machine For Geological Investigation for sale

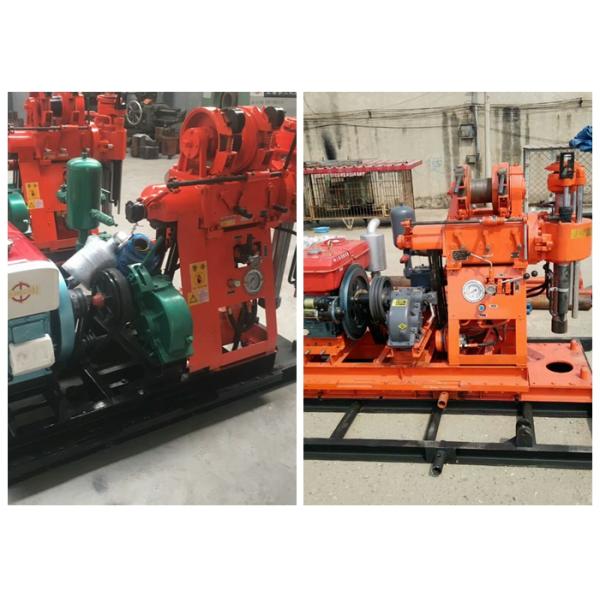

High Performance Soil Test Drilling Rig Machine For Geological Investigation Images
